Product Introduction

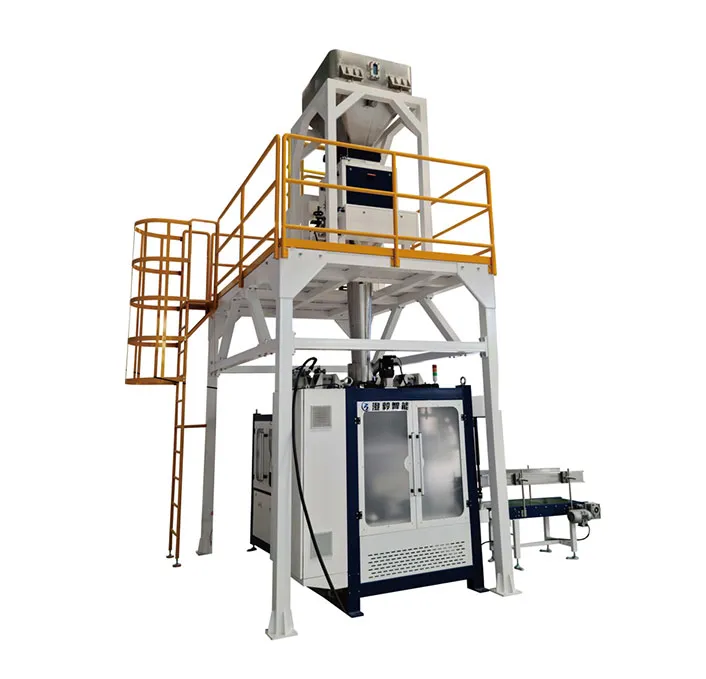

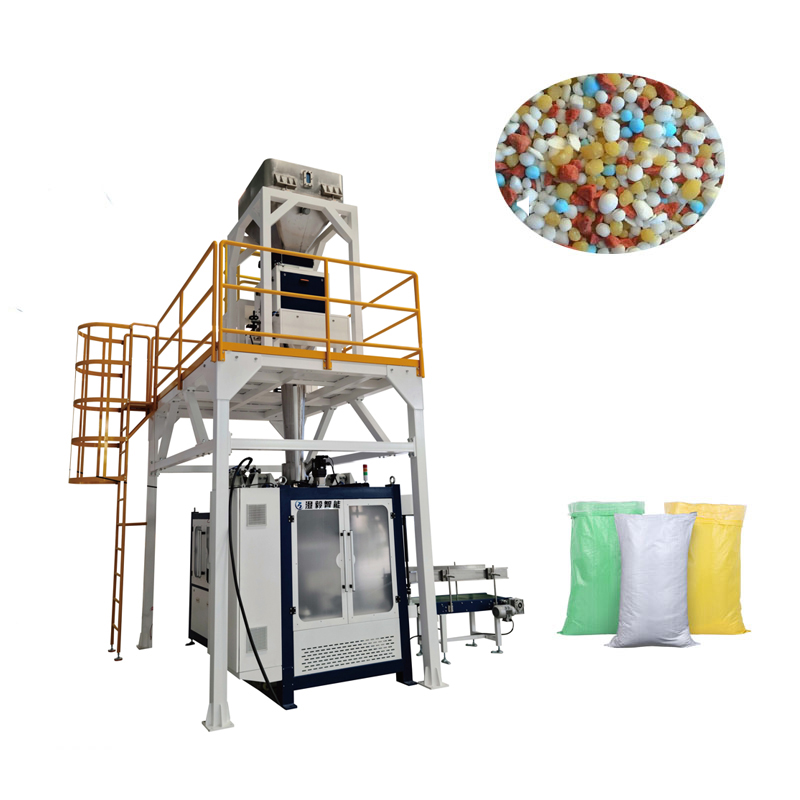

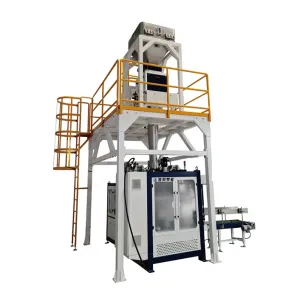

The China Factory 30kg Bagging Packaging Machine represents advanced automation technology designed for industrial-scale packaging operations. This heavy-duty equipment specializes in handling granular, powdered, and pelletized materials with precision and efficiency. Engineered for demanding production environments, it integrates weighing, filling, and sealing functions into a single streamlined process, achieving packaging speeds of 180-240 bags per hour while maintaining ±0.1% weighing accuracy. Manufactured by industry-leading Chinese automation specialists like Hefei Honor Automation, this machine features robust stainless steel construction with optional Q235 carbon steel components for corrosive environments. The modular design allows customization for various bag types including woven bags, kraft paper bags, and composite film packaging (minimum 0.18mm thickness). With ISO and CE certifications, the equipment meets international safety and performance standards.

Application Scenarios

Agriculture: Ideal for fertilizers (NPK, urea), animal feed pellets, rice, wheat flour, and seed packaging. The anti-clogging design handles hygroscopic materials effectively. Chemical Industry: Processes industrial powders (graphite, resins), mineral ores, and plastic pellets. Optional explosion-proof configurations available for hazardous materials. Construction Materials: Packages cement, gypsum, sand, and dry mortar with minimized dust emission. Food Processing: Food-grade models (all stainless steel) handle sugar, salt, snack pellets, and grain products, complying with hygiene standards.

Operational Guide

Installation Requirements:

Level concrete foundation (load capacity ≥2T/m²) 3-phase power supply with voltage stabilizer (±10% tolerance) Compressed air system with oil-water separator

Standard Workflow:

Preparation:

Mount empty bags on pneumatic clamps; input parameters (weight, batch number) via 10-inch touchscreen. Filling Cycle: Fast-fill mode (80% capacity at 12kg/s) Precision mode (20% remainder at 3kg/s) Auto-checking system detects bag positioning errors. Sealing Process:Heat sealing (150-200°C) for plastic bags Stitching option for woven bags Reject mechanism removes under/overweight bags.Output Handling: Powered conveyor (adjustable 0.3-0.8m/s speed) Automatic palletizing interface available.

Maintenance Protocol:

Daily: Clean weighing sensors, inspect pneumatic filters Weekly: Lubricate chains, check seal bar alignment Monthly: Calibrate load cells, replace wear parts (screws, gaskets).

Troubleshooting & FAQ

Common Issues:

Irregular filling speed: Clean material bridges in hopper; adjust agitator intensity. Seal weakness: Verify temperature consistency; replace damaged Teflon strips. Dust leakage: Check filter bag integrity; increase suction fan RPM.

Frequent Questions:

Q1: Can it handle valve-type bags? A: Yes, with optional bag clamp adapters (provide inner diameter specifications).

Q2: What's the lead time for customized machines? A: Typically 20-30 working days after receiving 30% deposit.

Q3: How to integrate with existing production lines? A: Supports RS485/Modbus communication; our engineers provide PLC programming service.

Q4: Warranty coverage details? A: 12-month warranty includes free spare parts; lifetime technical support via Skype/email.
