1. Product Introduction

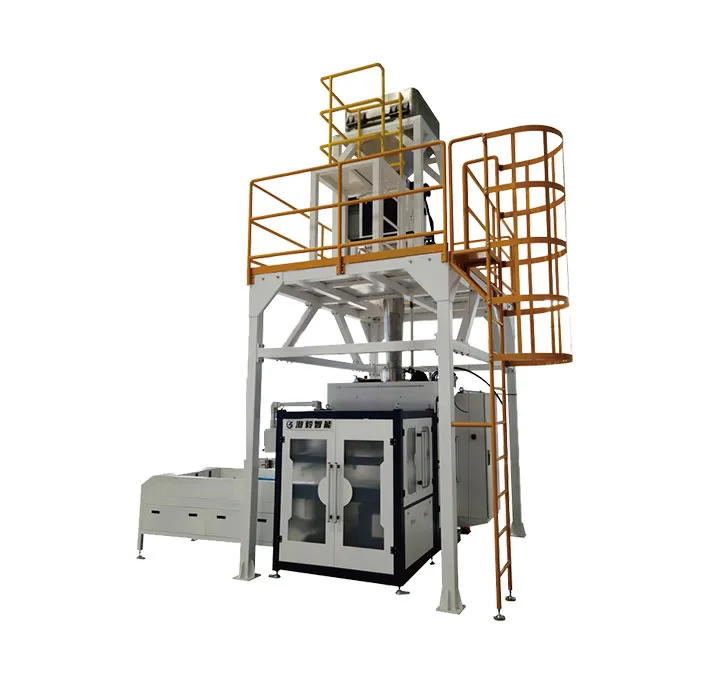

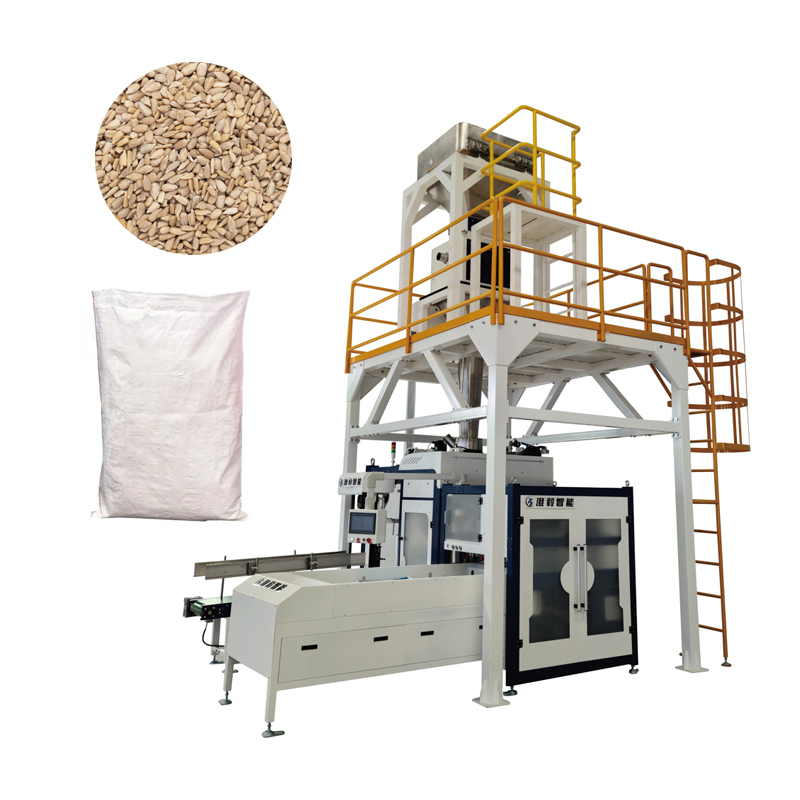

The FFS tubular film machine for 25kg seed packaging integrates advanced servo technology (±0.2% weighing accuracy) with seed-specific features including:

Nitrogen flushing system (O₂<0.5%) for germination preservation

Anti-static film handling (150-200μm multilayer co-extruded PE/PP)

Dust-proof screw feeder for delicate seed varieties

ATEX-certified components for combustible dust environments

Key technical parameters:

• Capacity: 400-500 bags/hour (25kg standard)

• Film width: 600-1000mm adjustable

• Sealing: Dual hot-bar with cool seal reinforcement

• Compliance: ISO 9001, CE, and ISTA seed packaging standards

2. Application Scenarios

2.1 Hybrid Seed Production

Moisture-sensitive corn/rice seeds requiring nitrogen atmosphere

GMO varieties needing traceable batch coding

2.2 Organic Farming Inputs

Bio-fertilizer coated seeds with anti-clogging auger design

Pelleted seeds requiring gentle vibration filling

2.3 Seed Bank Packaging

Long-term storage packages with UV-blocking films

Germplasm resources requiring -20℃ cold chain compatibility

3. Operational Manual

3.1 Pre-Production Setup

Film loading:

Mount 1.2m diameter anti-static film rolls

Thread through laser-aligned dancer rollers

Parameter configuration:

Set bag dimensions (standard 600×900mm)

Input seed-specific parameters:

Bulk density: 0.65-0.75g/cm³ (adjustable)

Vibration intensity:

Level 3 for fragile seeds

3.2 Production Cycle

Phase 1: Tube formation → Bottom seal (160°C)

Phase 2: Loss-in-weight filling (25kg±10g)

Phase 3: Nitrogen purge (5L/min) → Top sealing

Phase 4: Automated quality rejection system checks:

Weight tolerance (±0.1%)

Seal integrity (5kg pull test)

3.3 Maintenance Protocol

Daily:

Clean residual seeds with compressed air (≤0.3MPa)

Inspect film tension sensors

Monthly:

Replace wear parts:

Screw feeder liner (UHMW-PE material)

Sealing jaw PTFE strips

Recalibrate load cells with 25kg test weights

4. Troubleshooting

Issue 1:

Seed damage during filling

Solution:

Reduce auger speed to 60rpm

Activate vibration damping system

Issue 2:

Nitrogen concentration fluctuation

Solution:

Check gas analyzer calibration

Replace membrane filters (every 500h)

Issue 3:

Film static accumulation

Solution:

Ground all conductive components

Increase ionizer bar voltage to 7kV

5. Frequently Asked Questions

Q1: How to prevent cross-contamination between seed varieties?

A: Implement CIP (Clean-in-Place) system between batches with food-grade sanitizers

Q2: What's the minimum order quantity for custom films?

A: 5,000 linear meters with 30-day lead time for anti-static/UV-blocking films

Q3: Can the machine handle coated seeds with sticky additives?

A: Yes, with optional Teflon-coated hopper and vibratory discharge assist

Q4: What training is provided for operators?

A: 3-day onsite training covering:

Seed-specific parameter optimization

Emergency shutdown procedures

Q5: How does the system ensure traceability?

A: Integrated RFID tagging with blockchain-compatible data logging
